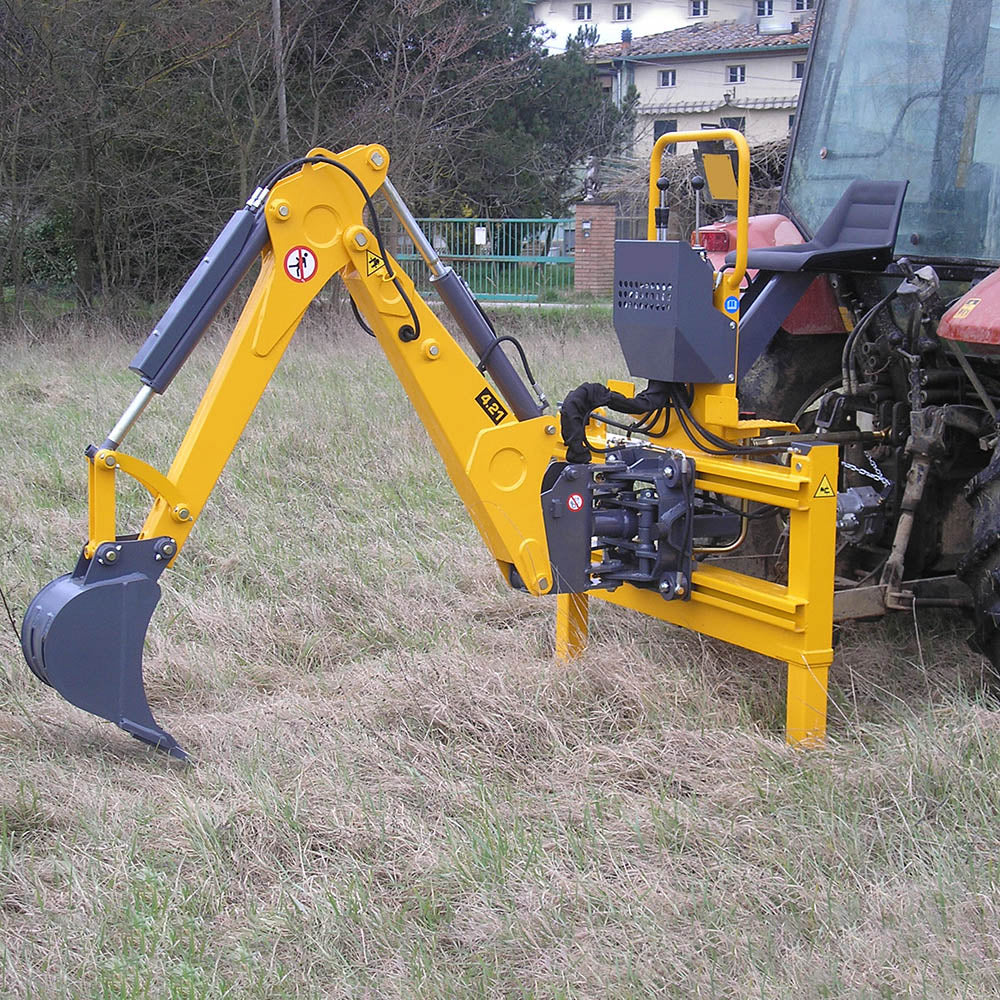

Series 4 Backhoe

Features:

• Backhoe with moving frame with hydraulic locking, applicable to the three-point hitch of the hydraulic boom.
• 180° central rotation by 1 cylinder (patented).
• Independent hydraulic stabilisers with block valves.
• Independent system with 8.4 cm³/rev., pump, multiplier, 22-lt builtin tank, oil strainer and hydraulic oil.
• Monoblock distributor with 40 lt/1’ flow rate and finger-tip control levers.
• Max working pressure: 190 bar.
• Standard bucket: 250 mm.
• Boom locking tensioners.
• Joints with pins and bushes of case-hardened and tempered steel.
• Chrome-plated double-liner cylinder rods.
• Sanding and polyester powder coating.
• Accessories on request: 300-400-500-600 mm bucket, 800-1000-1200 mm ditch cleaning bucket, 800-1000-1200 mm ditch cleaning tilting bucket, trapezoidal bucket.
