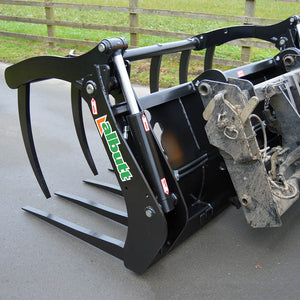

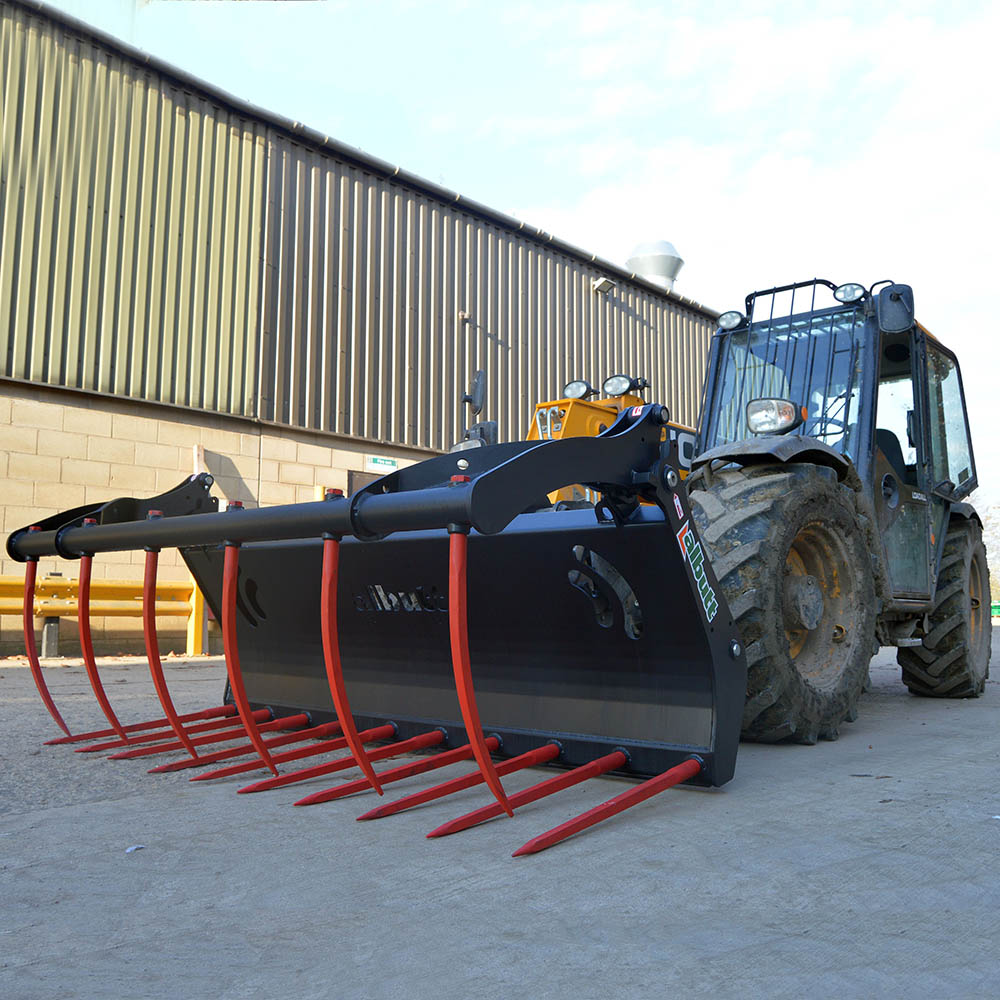

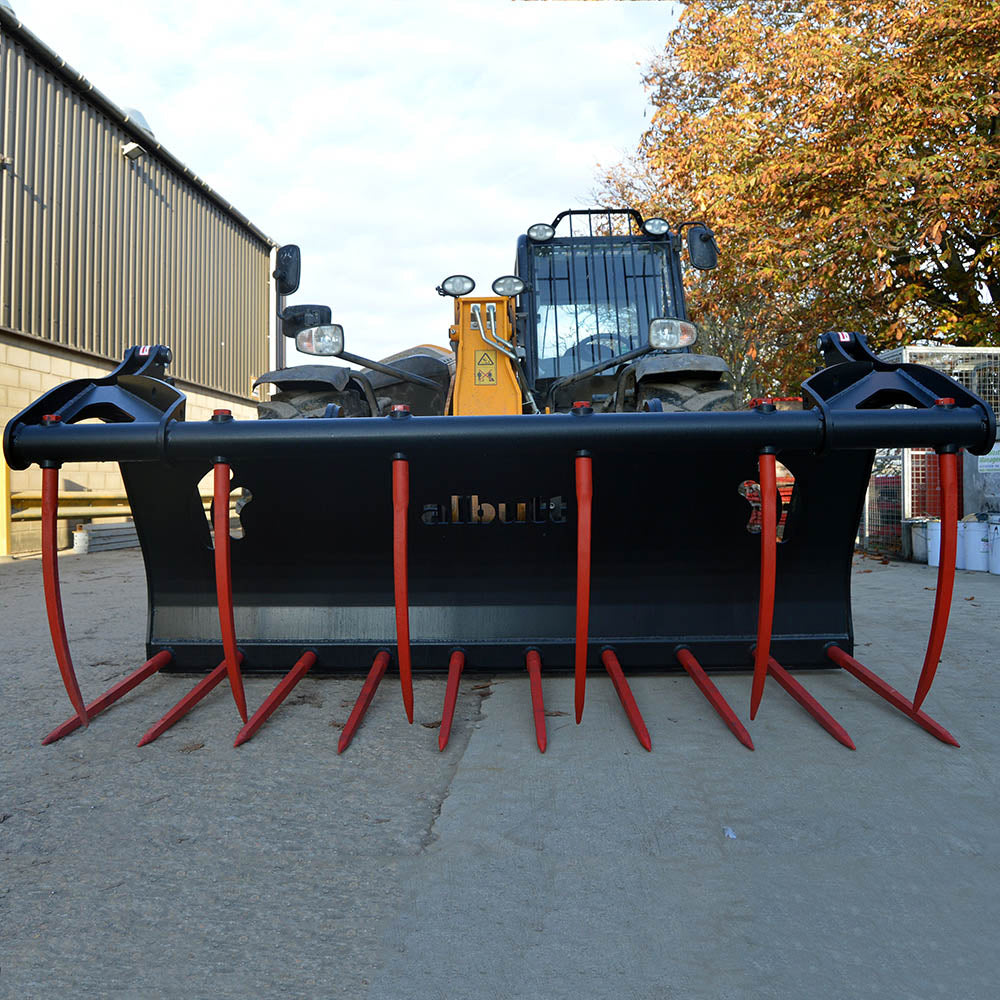

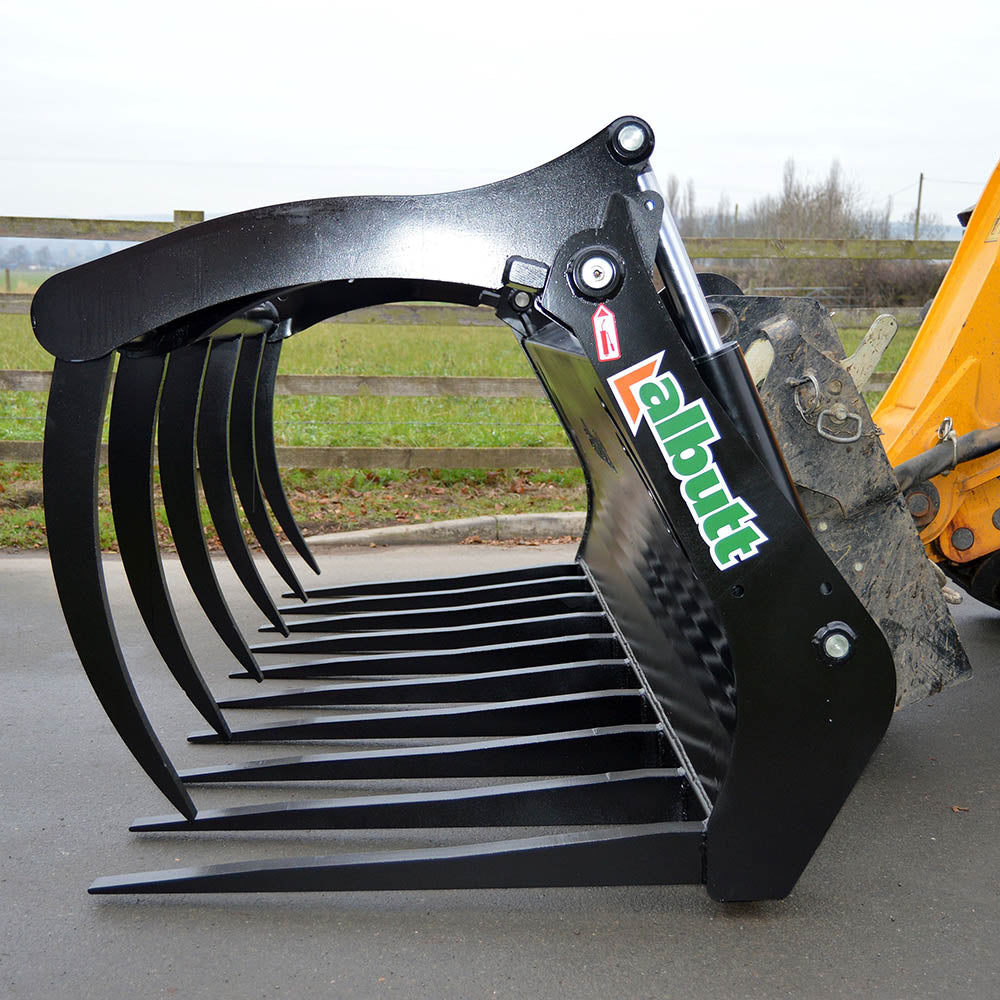

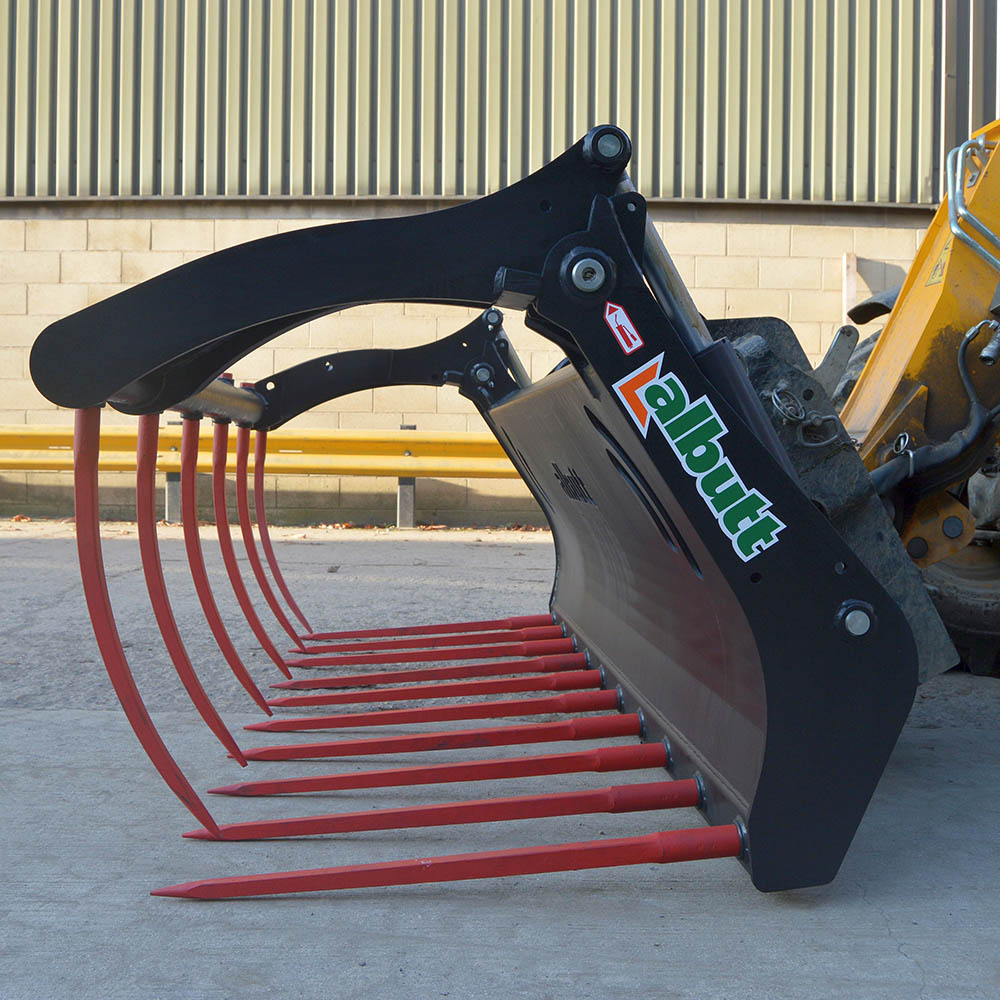

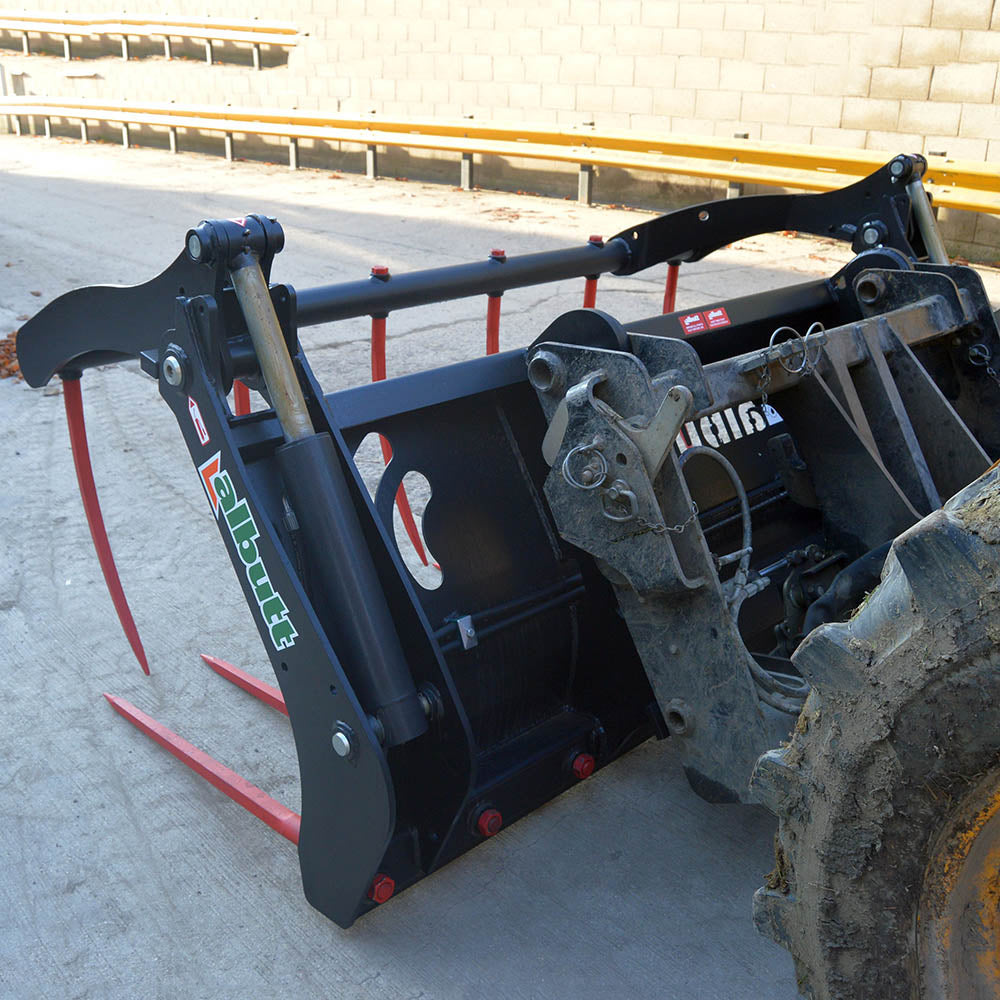

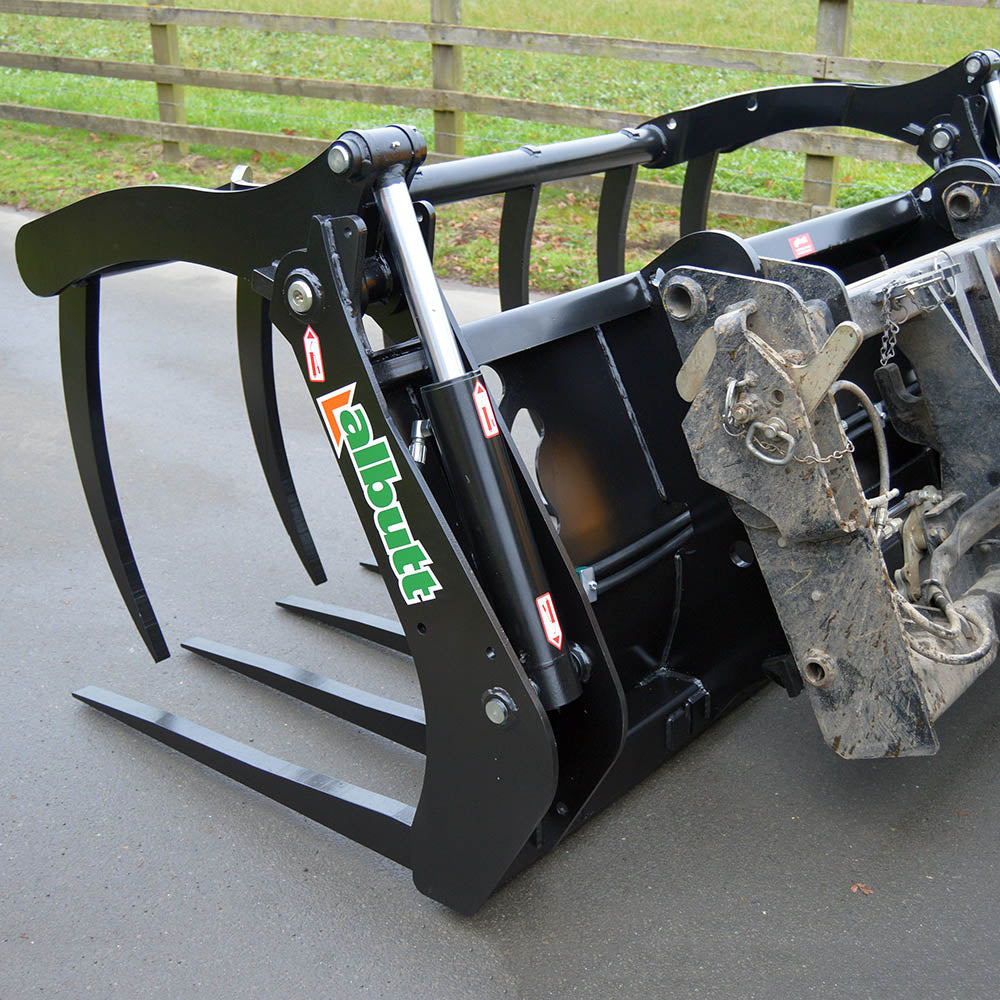

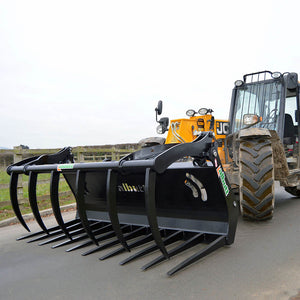

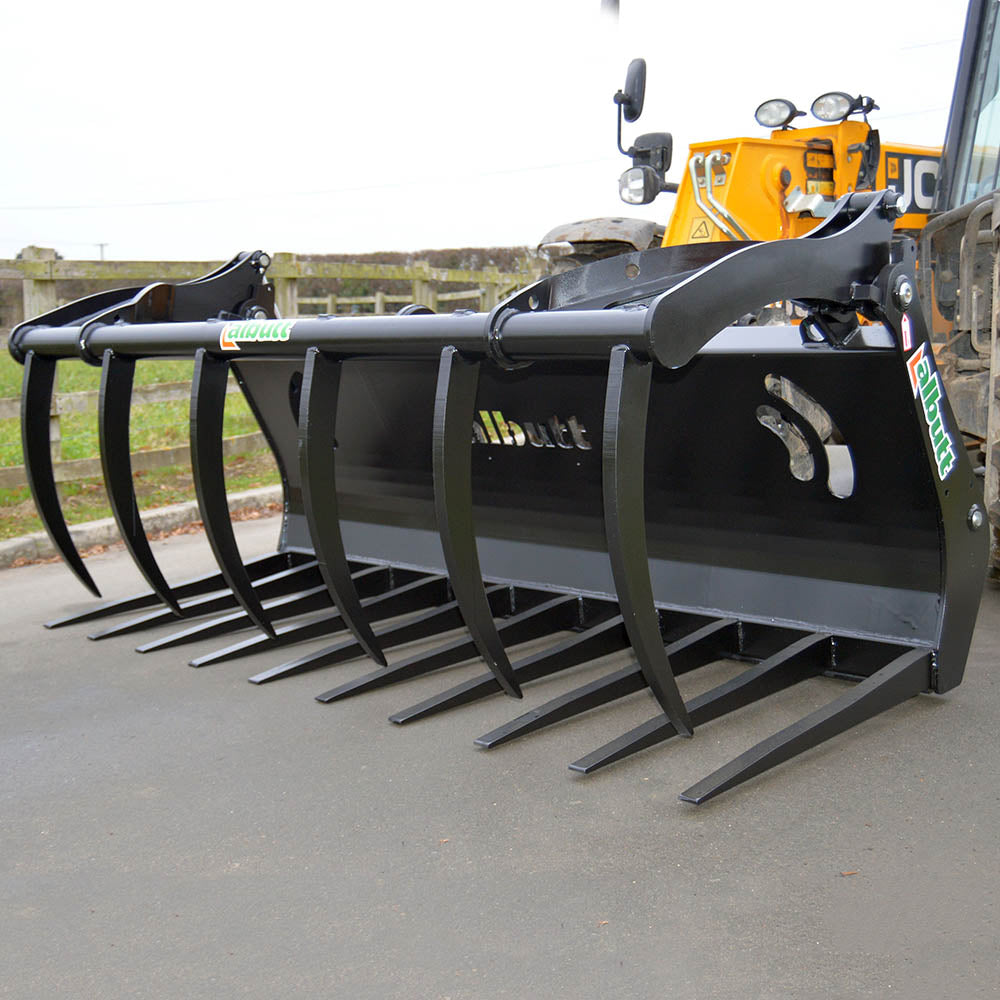

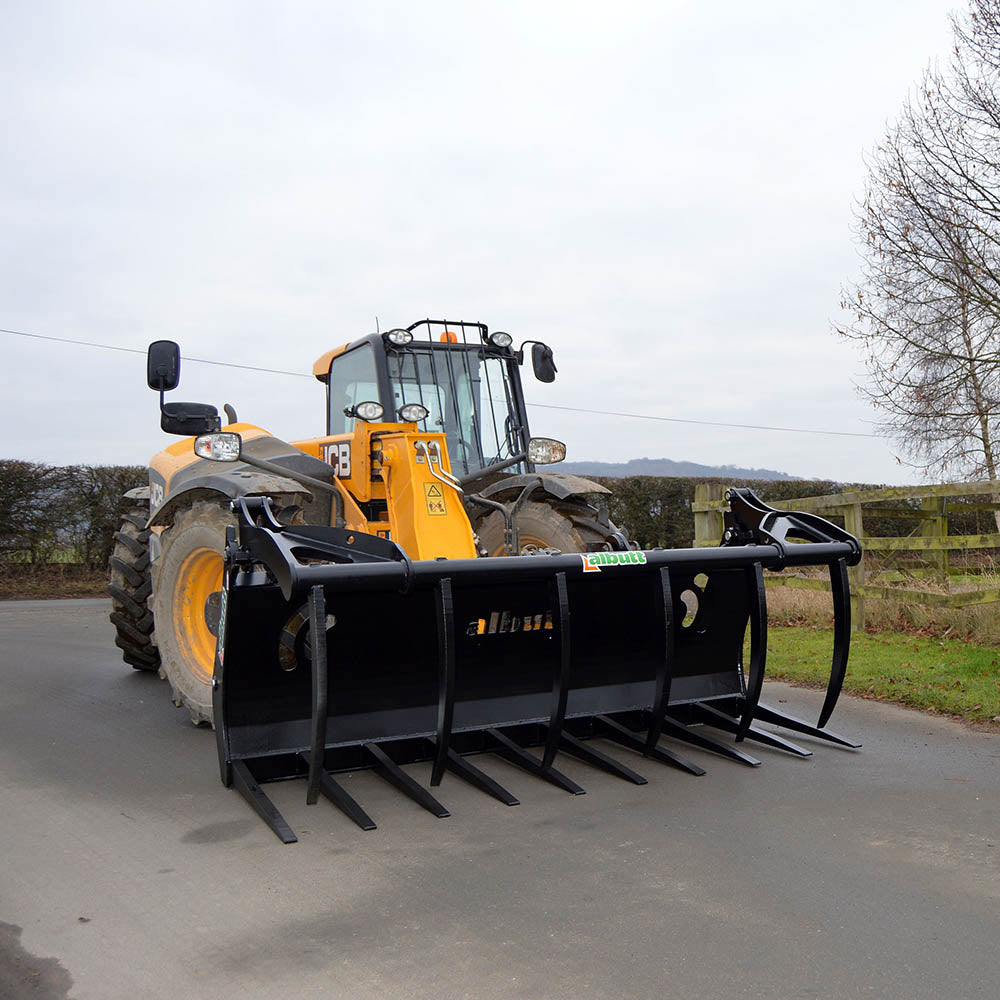

Fork and Grabs - C Series
Please Call 0161 480 0869 for Advice & Quotation
£0.00
C560HXG
- The Albutt range of Fork and Grabs covers models for use on Tractor Loaders, Telehandlers and Loading Shovels. A market leading specification ensures that the Albutt range of Fork and Grabs provides a longer operating life whilst providing excellent usability. For Hardox tine models, we use genuine Hardox material to provide resistance to bending and breaking against conventional tines. B-Series and C-Series models also incorporate a heavy duty grab stop which prevents against over extension of the grab, resisting against pin breakages and ram seals leaking.
-
Features
For machines with a 2-4 tonne lift capacity
Available with KV type tines or optional Hardox tines
35mm Ø top and bottom plated ram pins
45mm Ø pivot plated pins

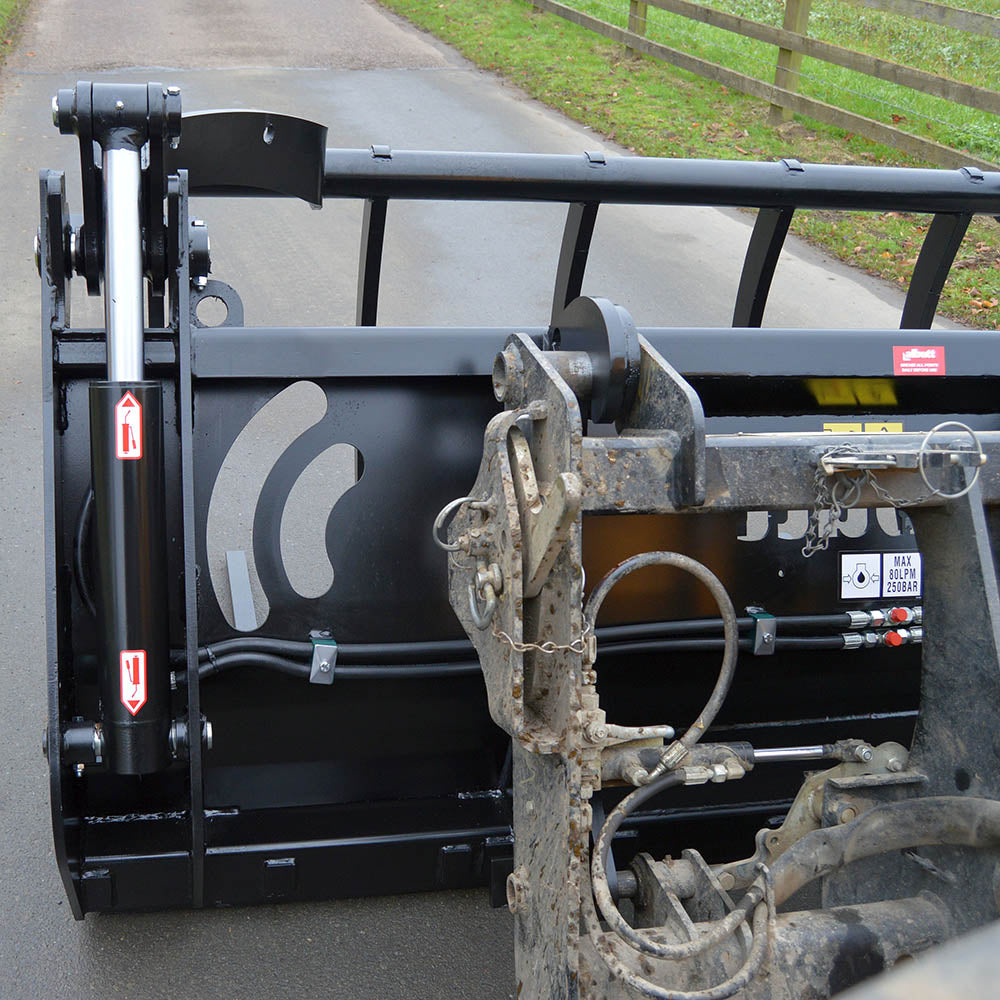

Heavy duty grab stops for ram seal and pin protection
75mm Ø bore rams
Grab opens to 1480mm
Base Tine length; Hardox 970mm / KV type 980mm
DX bushes in cylinder ends
Inward facing tees on rams
Central ‘albutt’ visibility cut out
Large side visibility cut outs
Full width base wear strip
Extra grab and base tine compared to industry standard -
