Retro Fit Radio Remote Control, 4 Functions

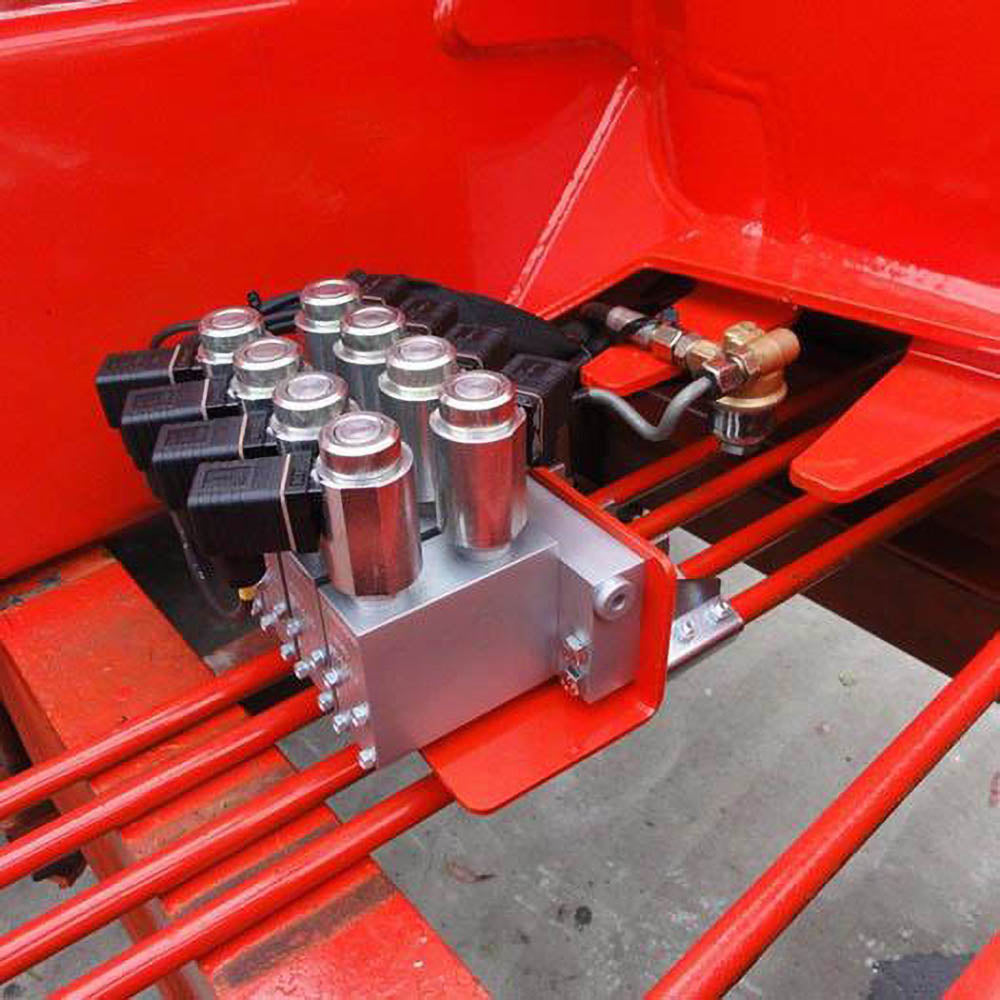

A complete system with 4 function operation. Includes a ‘servo actuator unit’ that connects to the original machine's valves or cross-rods to give proportional control. This system can be fitted to most existing hydraulic control valves. These can be for 12vDC or 24vDC systems and just needs to be confirmed when ordered so we can re program as necessary.

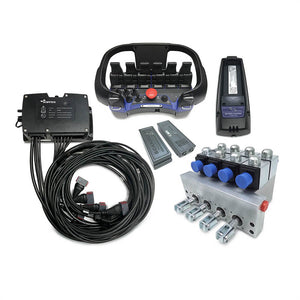

Complete kit supplied with

• Transmitter with proportional and additional non proportional outputs
• Receiver with antenna, pre wired and with connector plugs
• Start/Stop – RPM +/- functions
• 4 bank electro-hydraulic servo unit (MOD10)
• Pilot valve (up to 70 Ltr/min)
• Full wiring kit
• 2 x batteries & charger unit
• 3 micron filter unit for pilot line
• Rod connection clamping kit
• Neck strap
• Programming – emergency cable
• Full instruction handbook

Not included in the kit

• ¼” hoses
• MOD10 mounting bracket.

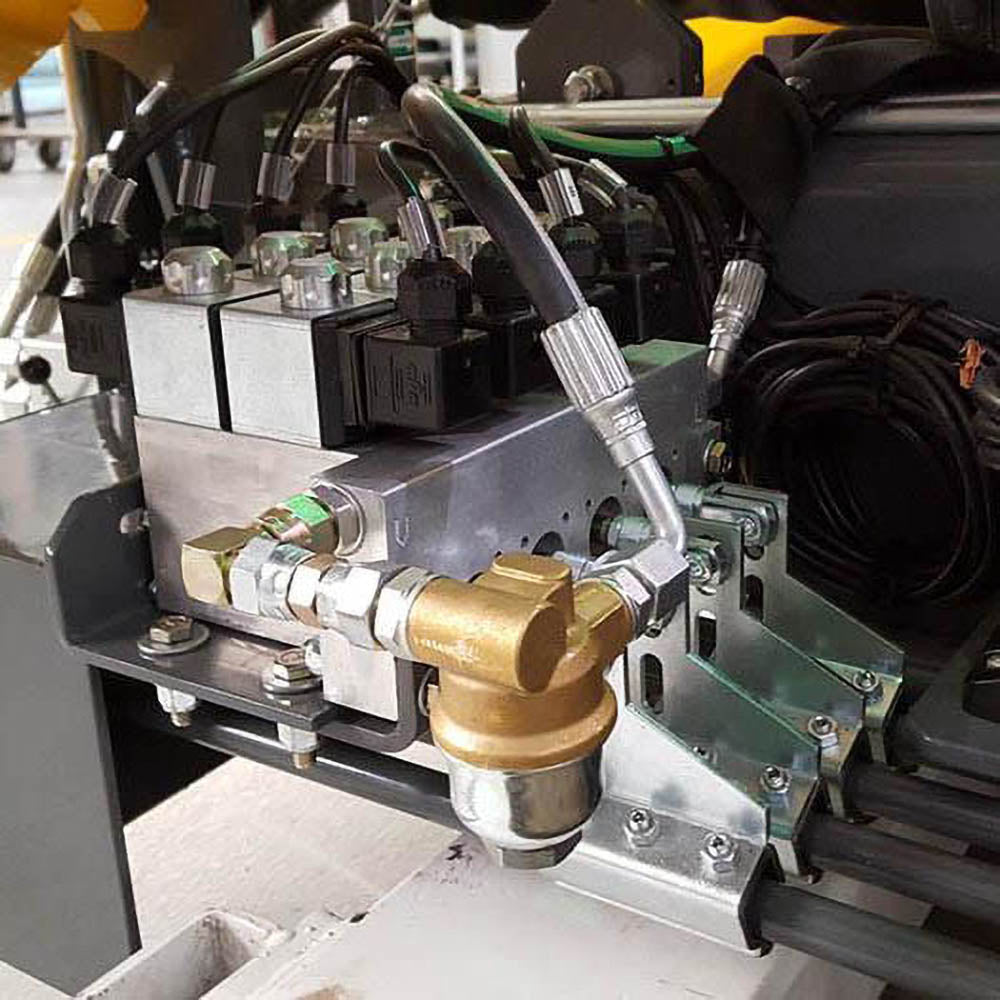

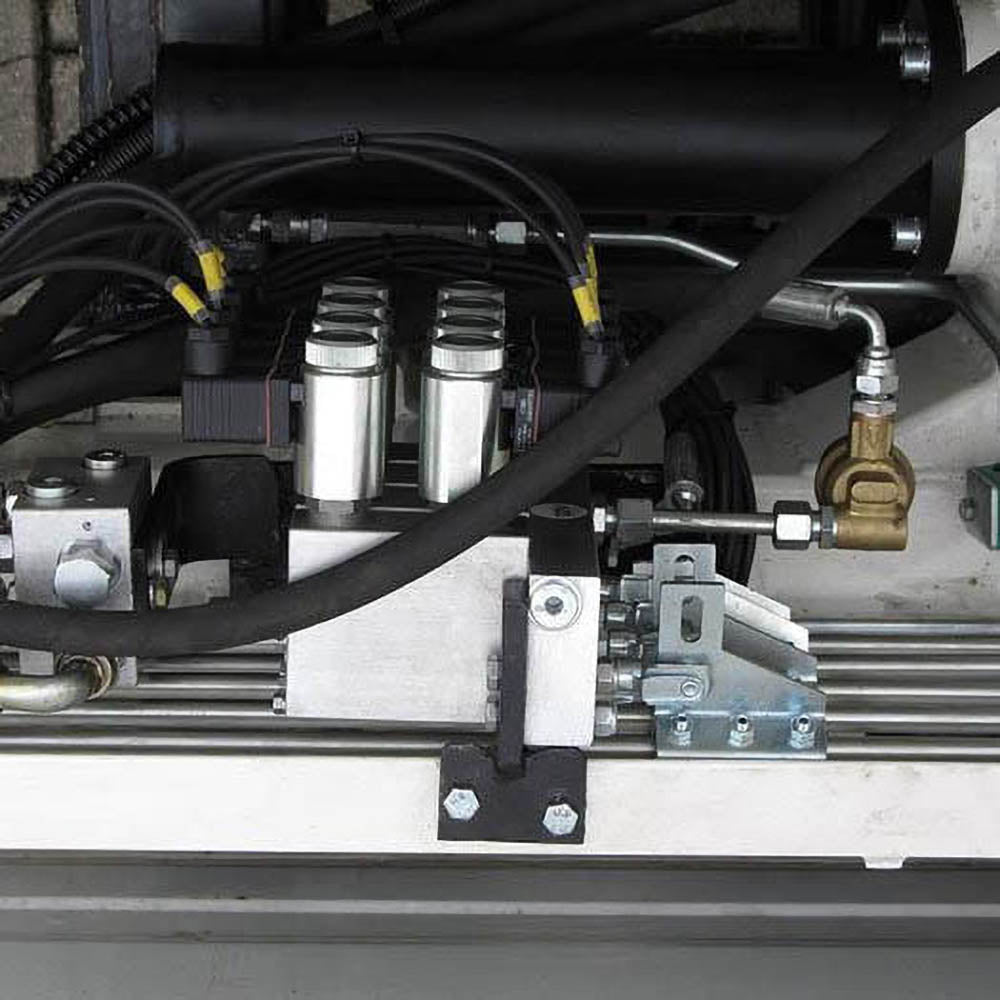

MOD10 Installation	Connection Diagram
