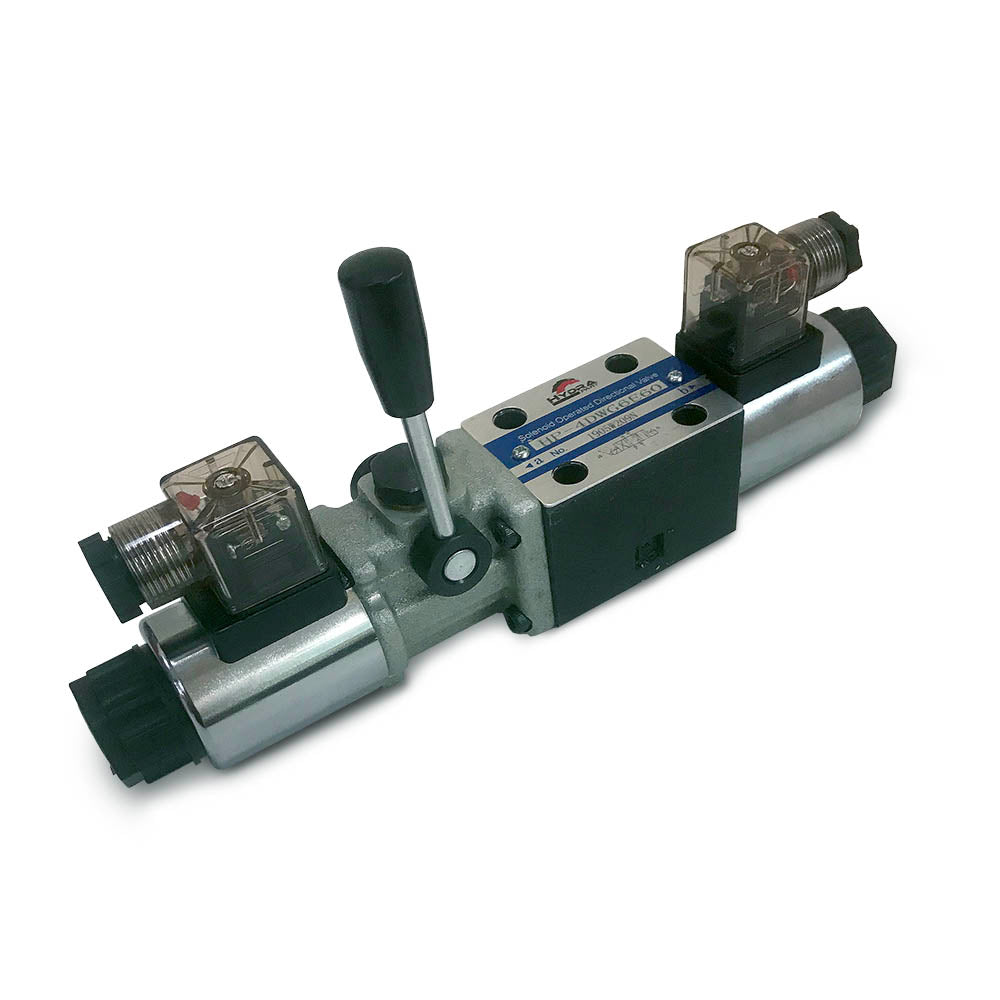

CETOP 3 - P Blocked - A&B to T with Manual Lever

Hydra Part CETOP valves are used for a wide variety of mobile and industrial applications.

Configuration

P Blocked - A&B to T with Manual Lever

Specifications

• Nominal Size: NG06
• Maximum Flow Rate: 60 l/min
• Maximum Pressure: A,B,P = 315 Bar T = 160 Bar
• Seal Material: NBR
• Max Fluid Temperature : -20 degrees Celsius to +70 degrees Celsius.
• Oil Viscosity: 2.8 to 380 mm2/s
• Switch Cycles Open: 50 to 60 ms.
• Switch Cycles Closed: 50 to 70 ms.
• Switch Frequency 15000 times per hour.
• Insulation Grade: IP65
• Double Solenoid: 2.2kg
• Voltages: 12vDC, 24vDC, 110vAC, 220vAC

• Manual Override: Standard on all valves
• Connector Type: DIN Plug (with LED)
