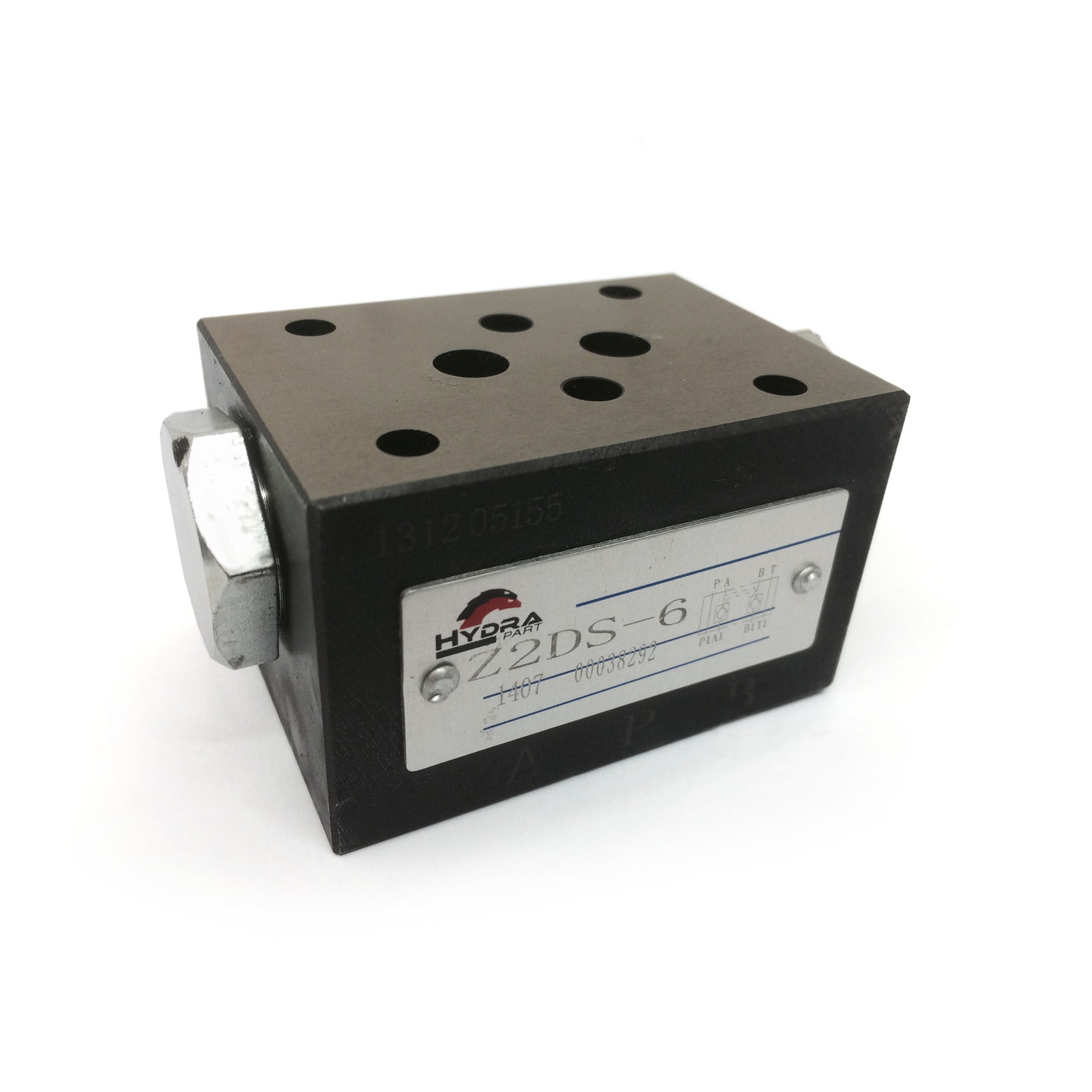

CETOP 3 Modular Pilot Operated Check Valve on A & B (Z2DS-6)

The Z2DS series are pilot operated style sandwich valves. These valves are used to close one or two actuator ports.

• For CETOP 3 (NG06)
• Max operating pressure 315 Bar (4567 psi)
• Max flow rate 50 LPM
• Weight 1.75kg
• Temp Range -30oC to 80oC
