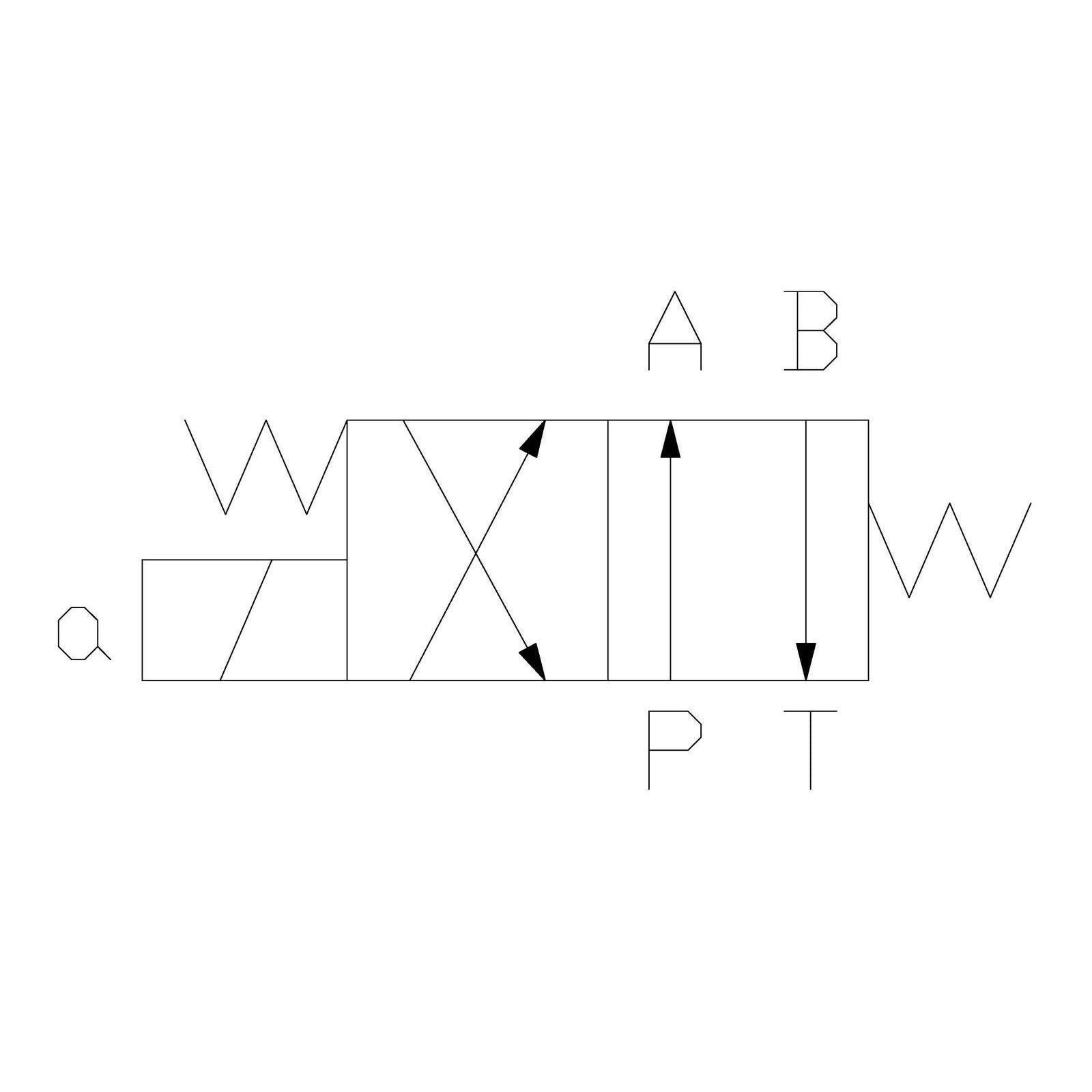

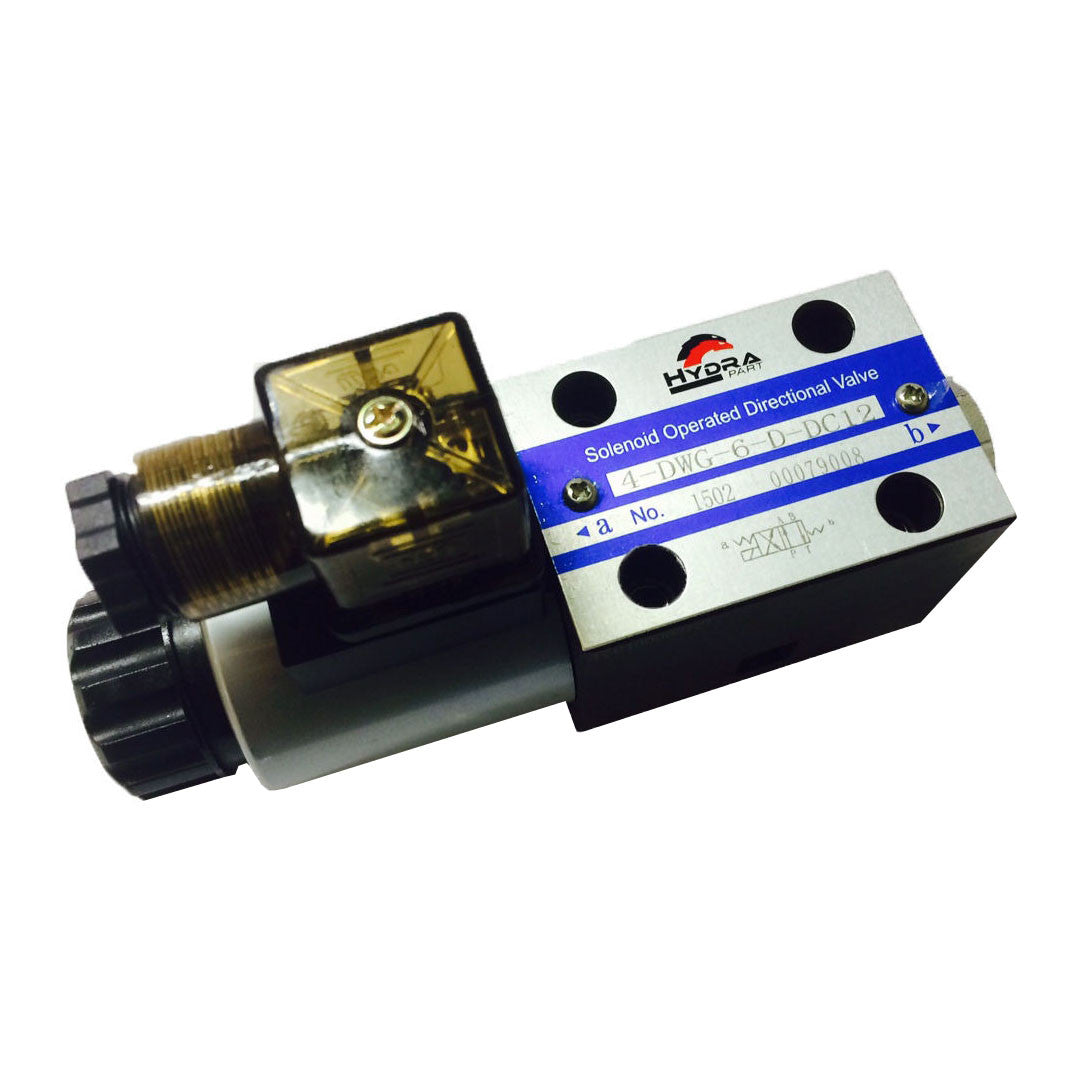

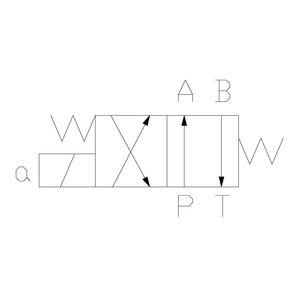

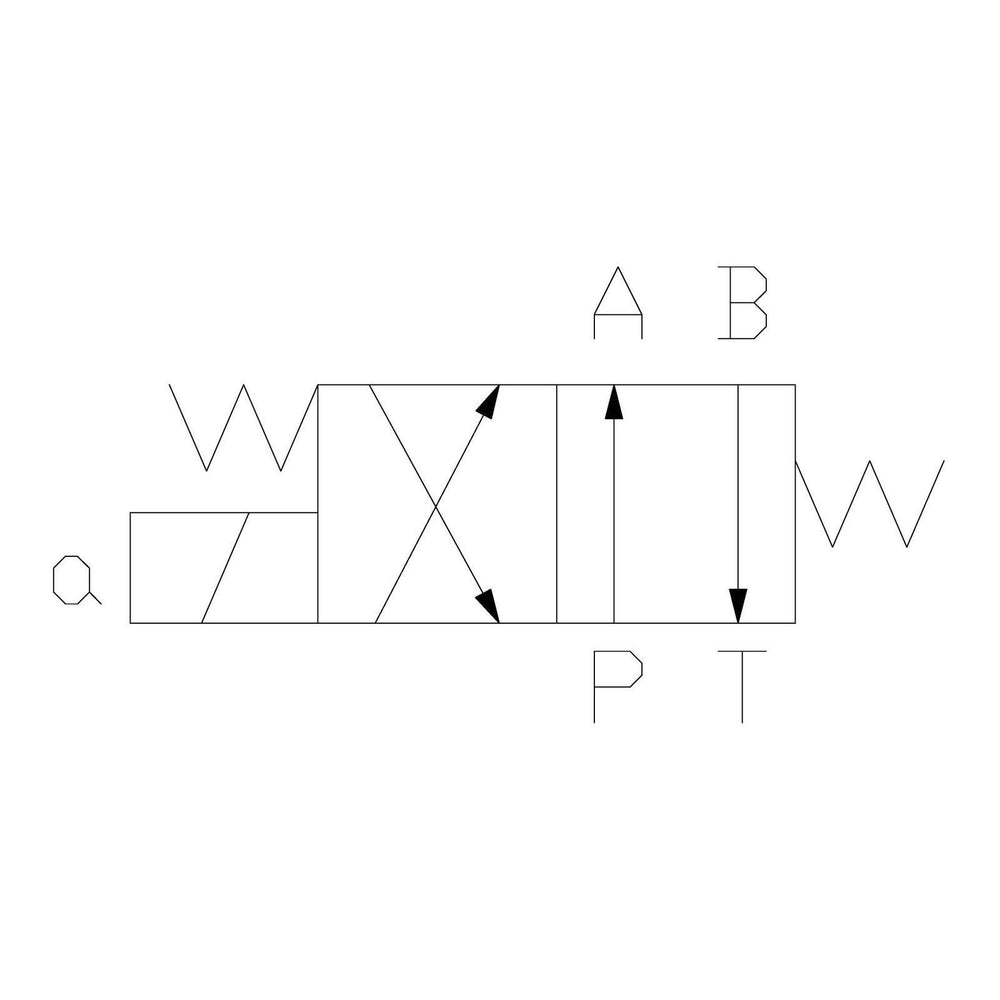

CETOP 3 Single Solenoid Control Valve NG06 - P to A & B to T (X - 11)

For use in a range of mobile and industrial applications

Technical Specifications

• Nominal Size: NG06
• Maximum Flow Rate: 60 l/min
• Maximum Pressure: A,B,P = 315 Bar T = 16 Bar
• Seal Material: NBR
• Max Fluid Temperature: 20 degrees Celsius to +70 degrees Celsius.
• Oil Viscosity: 2.8 to 380 mm2/s
• Switch Cycles Open: 50 to 60 ms.
• Switch Cycles Closed: 50 to 70 ms.
• Switch Frequency 15000 times per hour.
• Insulation Grade: IP65
• Single Solenoid: 2.2kg
• Voltages: 12VDC, 24VDC,110V/AC 50HZ, 220V/AC 50HZ
• Manual Override: Standard on all valves
• Connector Type: DIN Plug (with LED)
