CETOP 5 Double Solenoid Control Valve NG10, All Ports Blocked

Hydra Part CETOP valves are used for a wide variety of mobile and industrial applications. The inter-changeable coils control the flow of oil through various port configurations.

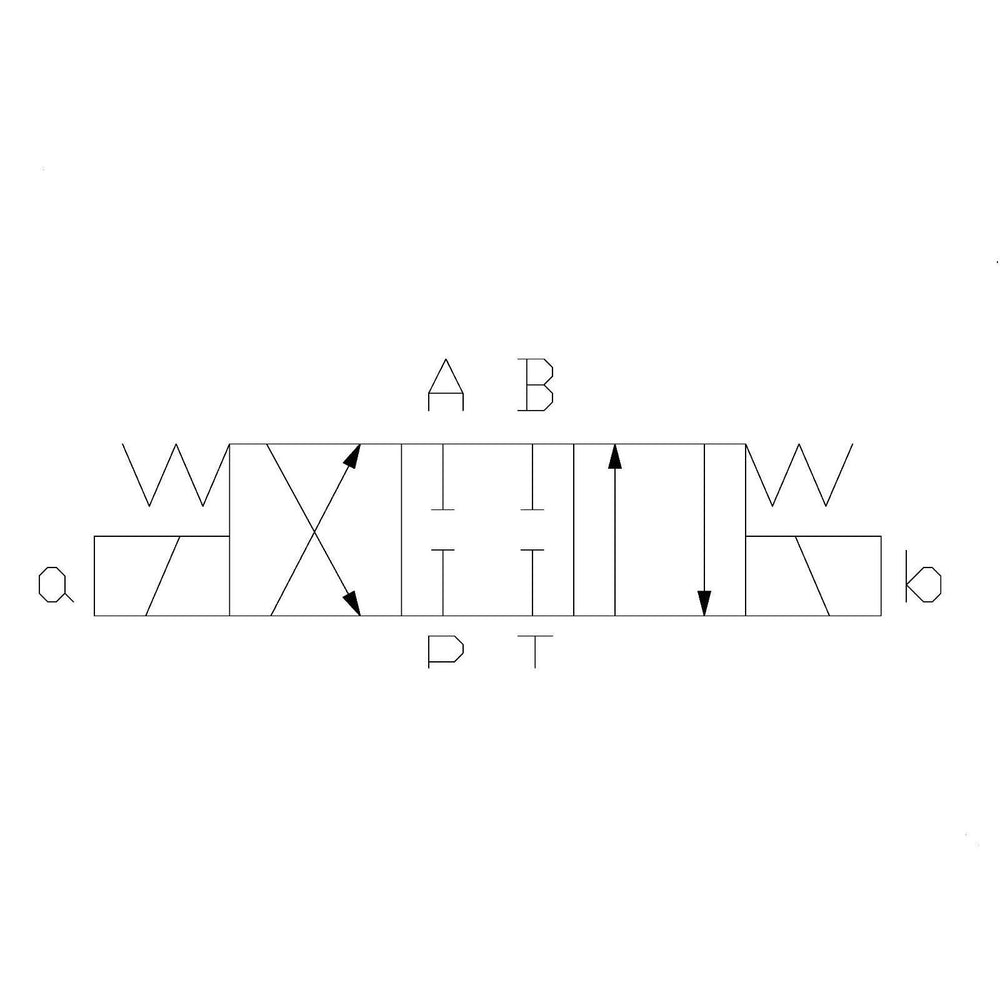

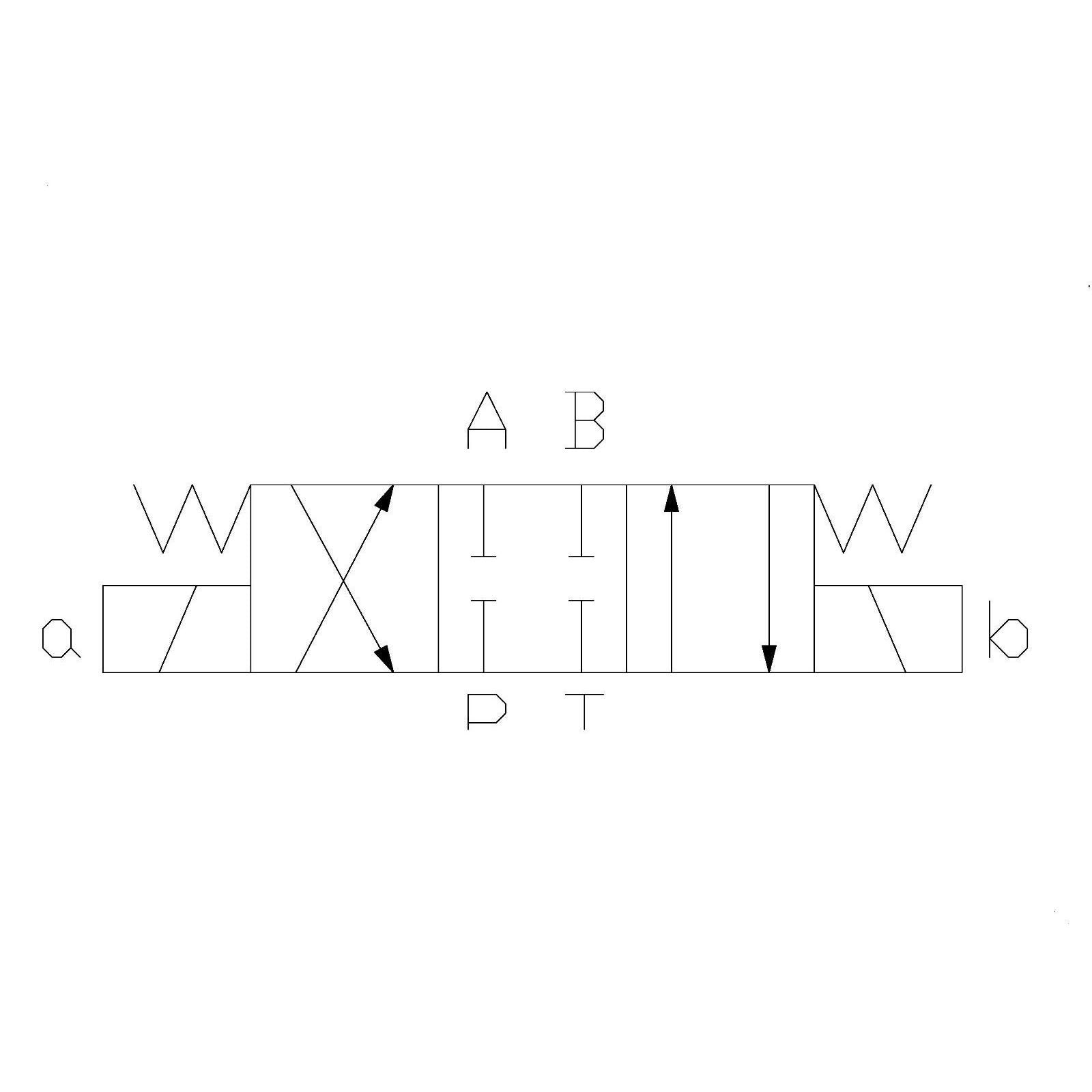

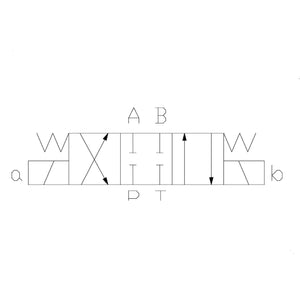

Configuration

 All Ports Blocked

Technical Specifications

• Nominal Size: NG10
• Maximum Flow Rate: 120 l/min
• Maximum Pressure: A,B,P = 315 Bar T = 16 Bar
• Seal Material :- NBR
• Max Fluid Temperature : -20 degrees Celsius to +70 degrees Celsius.
• Oil Viscosity: 2.8 to 380 mm2/s
• Switch Cycles Open: 50 to 60 ms.
• Switch Cycles Closed: 50 to 70 ms.
• Switch Frequency 15000 times per hour.
• Insulation Grade: IP65
• Double Solenoid: 6.4kg
• Voltages: 12VDC, 24VDC,110V/AC 50HZ, 220V/AC 50HZ
• Manual Override: Standard on all valves
• Connector Type: DIN Plug (with LED)
