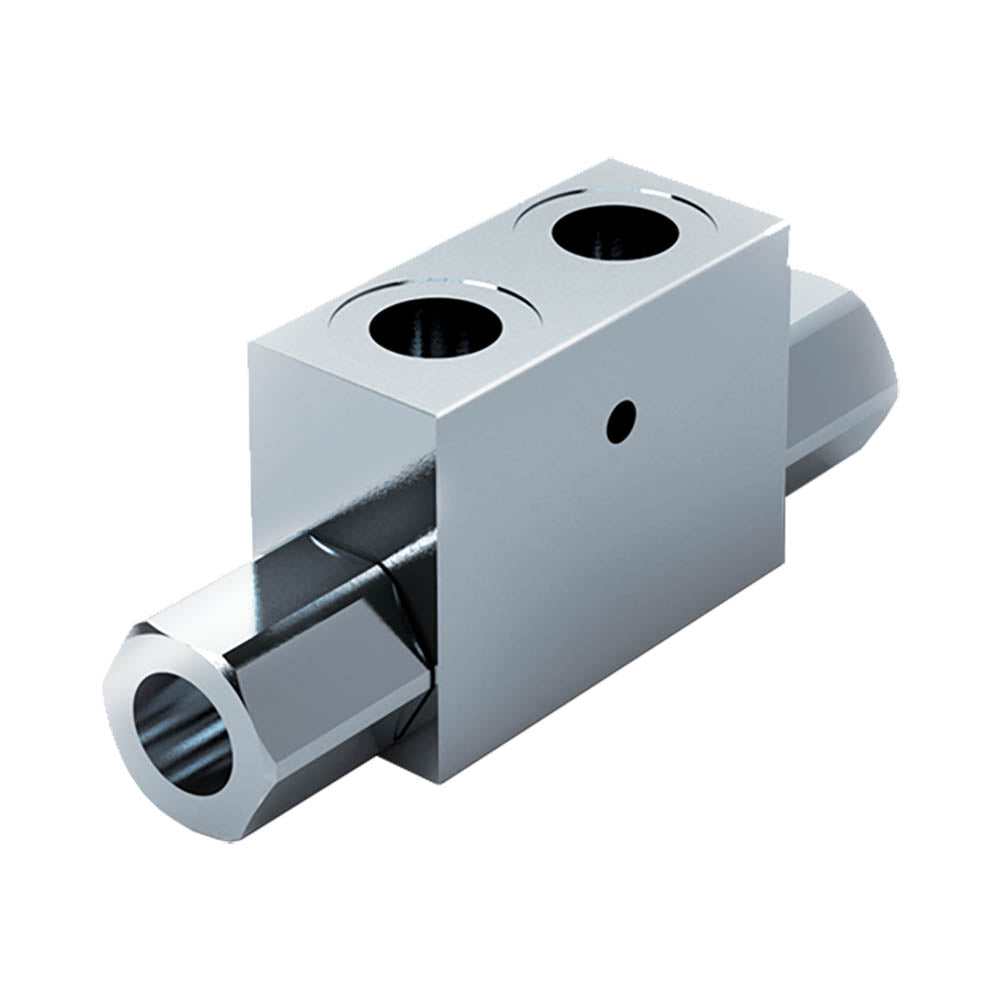

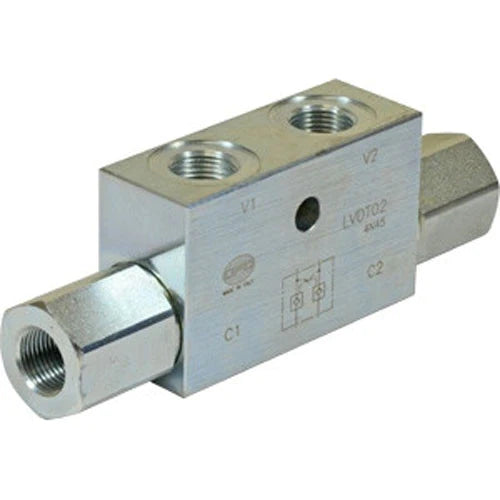

Top Link Double Pilot Check Valve 3/8"BSP In Lin - 25Lpm
£41.26 - £51.77
V0050
Please see data sheets for options.

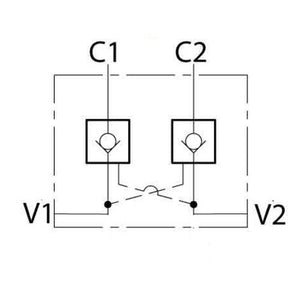

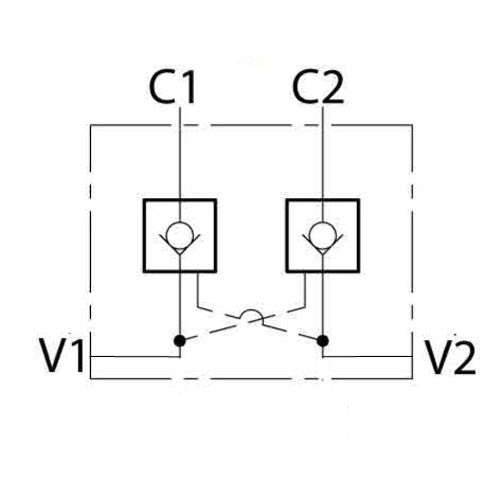

Connect the actuator ports to be controlled to C1 and C2, and connect the pressure flow to V1 and V2. When pressure is applied to port V2 the valve allows flow from port C1 to V1 and likewise when pressure is applied to port V1 it allows flow from port C2 to V2.
Max Pressure Bar 300
 |
| V0050 DATA SHEET |
